DWARF-Star Miniature NIR Spectrometer

- NIR Measurements in the 900-1700nm range
- Spectral resolution down to 1nm for certain models
- Miniature size 5x3x2″ with rugged, compact design
- Integrated thermo electric cooler set to operate at -15 deg C
- Complete Software Development and Integrated Chemometrics options
- For NIR portable and OEM applications





The DWARF-Star Spectrometers is small, robust, and equipped with high performance InGaAs detector array for the 900-1700nm wavelength range and achieves resolving resolutions to 1.25nm. The DWARF-Star features no moving parts and is packaged in a small rugged metal enclosure (5”x3”x2”) for portable, process, and OEM applications. Advancements in electronic and optical design have allowed for size reduction never before achieved in a NIR spectrometer. The InGaAs detector is a Sensors Unlimited linear photo diode array with 512 pixels (1024 optional) 25μm by 500μm tall to provide maximum sensitivity. The detector has an integrated thermo electric cooler (TEC) maintained at –10 °C, stabilized within +/-0.1 °C. The NIR spectrometers accept a single strand SMA-905 terminated, low OH, fiber optic cable as input. Several models provide a vari- ety of operational ranges and resolutions suitable for both spectroscopy and optical spectrum analysis. Each DWARF-Star includes free SpectraWiz® Software and a developer’s toolbox of source codes, customizable demo programs, and full spectroscopy applications in LabVIEW, Visual Basic, Delphi Pascal, and MS Visual C. High speed spectral data acquisition with advanced features, such as time series analysis and episodic data capture with rapid sample logging are standard features. Post processing techniques such as baseline correction, data smoothing, and spectral derivatives are included. Additionally, add-on chemometrics packages are available for complete multivariate calibration, analysis, and run- time with the DWARF-Star.
The StellarNet DWARF-Star fiber optic spectrometers are available in several models to provide optimal ranges and resolutions for various NIR applications in the 900-1700nm range. The standard detector is a 512 element photo diode array with 25 x 500μm tall pixels and has zero defects.
The units interface to a PC via USB-2 and can be operated simultaneously with StellarNet UV-VIS spectrometers to provide a Dual-Detector Super- Range (Dual-DSR) spectroscopy system. StellarNet also offers light sources, probes, and sampling accessories to facilitate virtually any NIR application. The miniature DWARF-Star NIR spectrometer is ideal for process analytical technology for industries such as food and drug, chemical, oil and gas, and plastics. The DWARF-Star’s miniature size, low cost, and rugged design also make it ideal for the field, enabling on-site product analysis and quality control never before attainable.




GREEN-Wave Sample Spectra

GREEN-Wave Spectra


RED-Wave-Micro Spectrometers

- Measurements from 1750-2150nm
- MEMs improved performance over arrays
- SpectraWiz Software Suite
- Full spectrum OR selectable wavelength
- OEM and NIR sensing applications





The RED-Wave-Micro spectrometer is designed for OEM and sensing applications in the near-infrared spectral region. This miniature MEMS spectrometer covers spec- tral regions where InGaAs linear detector array technolo- gy lacks sensitivity and optical throughput. These micro NIR sensors are the perfect solutions for demanding NIR applications and light measurement >1700nm.



These RED-Wave-micro spectral sensors overcome the limitations of traditional linear array based spectrometers by utilizing innovative MEMS based Fabry-Pérot tunable filter technology. Due to their compact size and low cost, they are an ideal solution for advanced sensing applica- tion. These spectral sensors are designed for harsh industrial applications and they offer extreme ruggedness even in the most demanding environments.

- Compact just 1.5x1.5x1” and robust
- MEMs technology improved performance over InGaAs arrays
- Fully featured SpectraWiz Software Suite
- Low power consumption
- OEM high volume capabilities
- Full spectrum OR selectable wavelength options

- Moisture
- Ethanol
- Polymers
- Hydrocarbons
- CO2
- Agriculture and Food composition
- Pharmaceuticals



RED-Wave-Micro Sample Spectra

RED-Wave-Micro specifications


RED-Wave-NIRX-SR Spectrometer

- Measurements from 900-2300nm (0.90-2.30 um)
- For NIR measurements and applications requiring wide spectral range
- 512 or 1024 pixel extended range InGaAs Photo Diode Array
- Integrated 2-stage thermo electric cooler set to operate at -30 deg C





The RED-Wave-NIRx-SR spectrometers cover the NIR wavelength range from 0.9-2.3μm in one instrument using extended range InGaAs detectors. The spectrometers are exceptionally robust with no moving parts and are packaged in small rugged metal enclosure (2.75” x 4” x 6”) for portable, processes, and lab applications. The InGaAs detector is a Sensors Unlimited linear photo diode array with 512 pixels (1024 optional) 25μm by 500μm tall to provide maximum sensitivity. The detector has an integrated two- stage thermo electric cooler (TEC) maintained at – 20 °C, stabilized within +/-0.1°C. The RED-Wave- NIRx-SR InGaAs spectrometers use single strand low OH fiber optic input cable with SMA905.
Extended range NIR applications include chemical ID of samples using molecular absorption. Liquids samples are measured via cuvette, Dip probe, and flow cell for process monitoring of concentrations. Photonics applications include optical transmission characterization of materials for filter/coating applications. Laser and tunable laser wavelength monitoring, and micro-sensor applications.
The RED-Wave includes a high speed USB-2 interface cable to interface with notebook and desktop computers. SpectraWiz soft- ware is included for a variety of spectroscopy measurements.



RED-Wave-NIRX-SR Spectrometer Sample Spectra

RED-Wave-NIRX-SR Spectrometer Sample Spectra #2

RED-Wave-NIRX-SR Spectrometer models

RED-Wave-NIRX-SR Spectrometer specifications


sl3

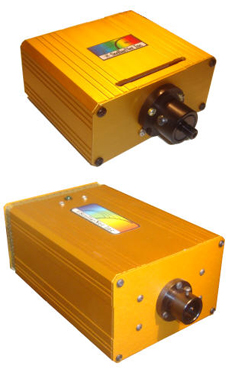

SL3 Deuterium Lamps
- Worlds smallest 4000 hour deuterium light source for continuous
wave UV light
- Specially designed for maximum stability, suitable for process applications down to 200nm
- Has an integrated temperature control and measures only
3.5 x 2.75 x 6.5 inches
- Integrated filter holder fits several 0.5″ diameter disk filters for various applications
- Includes 24 VDC power adapter
- Optional DCX Lens installation for 7-10x gain
- Optional U330 filter for D-alpha line (654nm) elimination




sl3-cal

SL3-Cal Deuterium Lamp
- Specially designed for maximum stability, suitable for process applications down to 200nm
- Has an integrated temperature control and measures only 3.5 x 2.75 x 6.5 inches
- Integrated filter holder fits several 0.5″ diameter disk filters for various applications
- Includes 24 VDC power adapter
- For spectroradiometer irradiance calibrations with data disk




sl5

SL1 +SL3 Deuterium and Tungsten Halogen Combination
- The high power SL1-Filter Halogen lamp and the SL3 Deuterium lamp with DCX lens installed can easily be coupled with a fiber optic Y-bundled fiber to provide high output, stable UV-VIS-NIR light, 200-2300nm, with long bulb lifetime
- The F400-YBNIRUV-SR is an armored 400um fiber optic Y cable bundle that is 0.5 meter, solarization resistant, and is specially designed to connect the SL1 and SL3 lamps
- D-alpha line (654nm) eliminated in deuterium source by adding a U330 filter to the nosecone of the SL3 light source




sl5

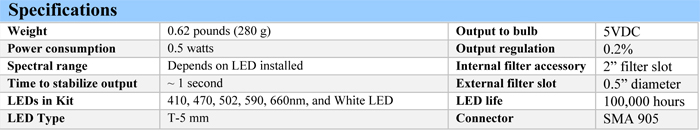

SL1-BLUE/ SL1-LED
- Spectral Range- LED dependent, optional white.
- Flexibility- user replaceable LEDs take less than a few seconds to replace
- Small Footprint- only 1.5” x 3” x 3.5”
- Powered Flexibility- 12VDC standard or 5VDC option

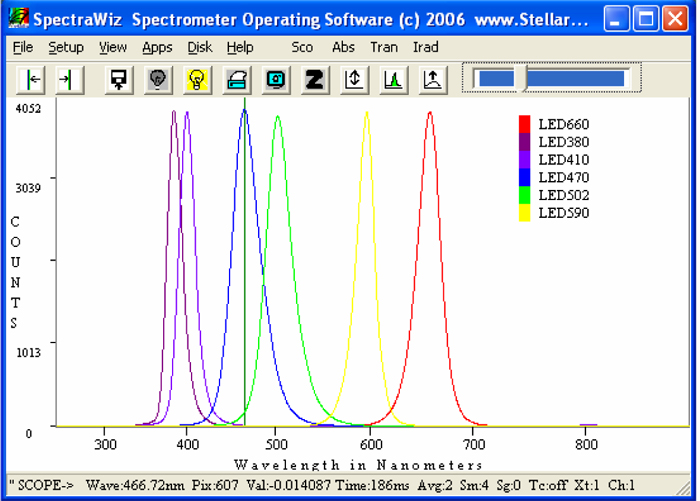

- 410, 470, 502, 590, 660nm, and White LEDs available
- LEDs continually being evaluated and introduced as LED technology improves



UV-VIS-NIR Sources

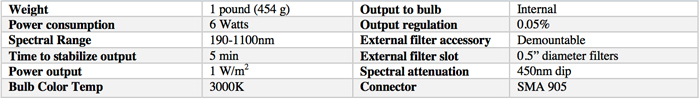

UV-VIS-NIR Sources specifications


StellarNet’s Raman Laser

StellarNet’s Raman Laser
- 785 & 1064nm Standard Wavelengths
- Couples easily to Raman probe and spectrometer
- Battery powered in Ruggedized metal case
- Raman Laser line 0.2nm FWHM over 50-100 F
- 499mWatt output with adjustable power




sl2

SL2 Mercury Argon
- Calibration lamp with Mercury and Argon gas emission lines from 253.65-1013.98nm
- Portable operation from 9VDC battery and includes 5VDC wall power adapter
- Used to perform wavelength calibration and demonstrate spectrometer resolution and operational range for UV/VIS/NIR/XNIR configurations

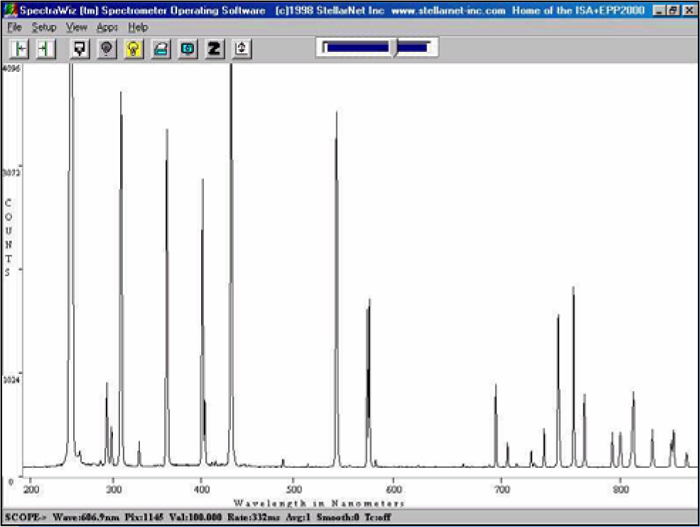

SL2 Light Emission Graph of HgA line Spectra

SL2 Mercury Argon specifications


sl1

SL1 Tungsten Halogen
- 10,000 hour tungsten krypton bulb with 2800 degree Kelvin color temperature
- For process control and field portable applications from 350-2300nm
- 7-28 VDC input with 0.2% power regulation for bulb
- 12VDC @ 800ma wall power adapter included
- 5 minute stabilization, no fans, slot for filters




sl1-cal

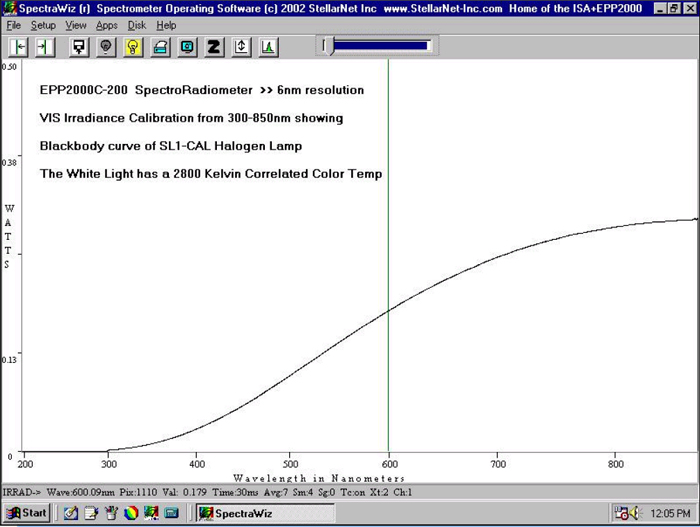

SL1-CAL Tungsten Halogen
- 10,000 hour tungsten krypton bulb with 2800 degree Kelvin color temperature
- For process control and field portable applications from 350-1700nm
- 7-28 VDC input with 0.2% power regulation for bulb
- 12VDC @ 800ma wall power adapter included
- 5 minute stabilization, no fans, slot for filters
- For spectroradiometer irradiance calibrations with USB Key




sl1-filter

SL1-FILTER Tungsten Halogen
- 10,000 hour tungsten krypton bulb with 2800 degree Kelvin color temperature
- For process control and field portable applications from 350-2300nm
- 7-28 VDC input with 0.2% power regulation for bulb
- 12VDC @ 800ma wall power adapter included
- 5 minute stabilization, no fans, slot for filters
- Color Equalization filter flattens the response from 500-900nm allowing a larger reference at 400nm for color based applications




sl1-cuv

SL1-CUV Tungsten Halogen
- 10,000 hour tungsten krypton bulb with 2800 degree Kelvin color temperature
- For process control and field portable applications from 350-2300nm
- 7-28 VDC input with 0.2% power regulation for bulb
- 12VDC @ 800ma wall power adapter included
- 5 minute stabilization, no fans, slot for filters
- Light source includes integrated standard 1cm cuvette holder and collimating lens with SMA-905 fiber optic interface




sl1-bat

SL1-BAT Tungsten Halogen
- 10,000 hour tungsten krypton bulb with 2800 degree Kelvin color temperature
- For process control and field portable applications from 350-2300nm
- 7-28 VDC input with 0.2% power regulation for bulb
- 12VDC @ 800ma wall power adapter included
- 5 minute stabilization, no fans, slot for filters
- Connector allows +5V battery operation




SILVER-Nova Sample Spectra

SILVER-Nova specifications


sl5

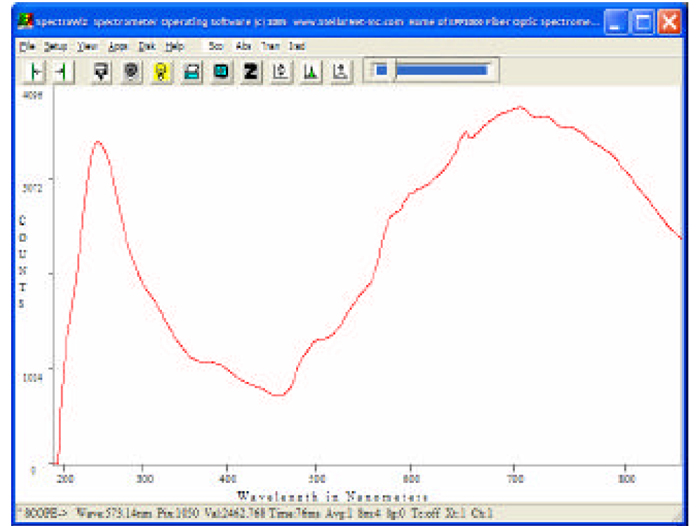

SL5 Deuterium / Halogen Combination
- A miniature Deuterium and halogen light source that covers the 200-1700nm range
- Small size of 1.5 x 2.5 x 6″ makes it a perfect match for our
- BLACK-Comet UV-VIS spectrometer
- The SL5-DH lamp connects via fiber optic cable to cuvette holders, dip probes, and flow cells, with the return signal routed to the spectrometer SMA 905 input connector
- The deuterium and halogen lamps can be individually turned on/off and have a front and rear panel shutter control
- Great for applications that only require low output power like absorbance and transmission measurements




sl5-cuv

SL5-CUV
- A miniature Deuterium and halogen light source that covers the 200-1700nm range
- Small size of 1.5 x 2.5 x 6″ makes it a perfect match for our
- BLACK-Comet UV-VIS spectrometer
- The SL5-DH lamp connects via fiber optic cable to cuvette holders, dip probes, and flow cells, with the return signal routed to the spectrometer SMA 905 input connector
- The deuterium and halogen lamps can be individually turned on/off and have a front and rear panel shutter control




UV-VIS-NIR Sources

UV-VIS-NIR Sources specifications


Cosine Receptors

Cosine Receptors collect light with an 180o field of view using demountable diffusers with ~10% loss. A perfect cosine response provides accurate absolute intensity when multiple lights are measured at the same time.

  • CR2 is a 1⁄4” diameter UV-NIR cosine receptor using a polymer diffuser for 200-1700nm & 180° FOV .
  • CR2-AP is a 10% aperture for the CR2 that extends the system dynamic range by an order of magnitude, thus enabling spectral measurements of sources that are 10 times brighter without the need for re- calibration using a brighter calibration lamp.
  • CR2-RA is a 90° right-angle Cosine Receptor cube.
  • CR2-TP miniature tripods for the CR2.
  • CR-LENS is a cosine receptor lens assembly that reduces the field of view from 180 degrees to a small spot. Adjustable focus allows variable distance from target surface such as OLED displays.



UV-VIS-NIR Sources specifications


CUV1

IC2 is a 2” cube with internal integrating sphere. It has a 5/8” input port, internal reflective coating, and SMA fiber optic output. The additional SMA input can be used for reflectance illumination.



CUV1 - Technical Specifications

1 cm SMA 905 Spectra of an Agricultural Chemical using a 1 cm cuvette


TXF1 Transmission Fixture for UV-VIS - NIR



  • TXF-1 Transmission Fixture includes 2 UV grade collimating lenses, aligned and fixed 1cm pathlength.
  • TXF-4 includes two collimating lenses which allows the sample to be oriented vertically as shown above. The standard fixture allows a variable pathlength from 0 to 7cm. Custom posts can be designed to increase pathlength.Interchangeable parts allow the TXF-4 to be easily converted into the RPH-3 using the same base and stand.
  • TXF-IC2 Vertical transmission fixture with variable path length, includes 1 collimating lens and 1 miniature 2″ integrating sphere with 5/8″ port. The integrating sphere collector is useful when measuring the transmission of thick samples such as bulletproof glass or samples with curved surfaces such as lenses.



TXF-4 - Technical Specifications

Transmission of Holmium Oxide Glass


Dip Probe
dipprobe



  • R600-8-UVVIS-SR is a dual purpose fluorescence/reflectance probe with 7 optical fibers bundled around 1 600μm fiber. For fluorescence measurements the 7 exterior fibers are illuminated by a high output excitation source such as our SL1-LED and the interior fiber collects light emission and returns the signal to the spectrometer. Inline filters can be added to the system to remove excitation frequency artifacts.
  • RPH3 can also be used as a Fluorescence Probe Holder stand for direct excitation of solid and powdered fluorescence agents.




Lenses and Couplers



  • LENS-COL is a collimating lens for the VIS-NIR ranges. It attaches to the end of a fiber optic cable or directly to a spectrometer with a SMA-Coupler. Field of view is approximately 3 degrees
  • LENS-QCOL is a collimating lens for the UV-VIS-NIR ranges. It attaches a fiber optics directly or to a spectrometer with a SMA-Coupler. Field of view is approximately 3 degrees.
  • SMA-Coupler allows accessories, such as collimating lenses or cosine receptors, to attach directly to a spectrometer without the need for fiber optic cables.
  • Splice Bushing is used to adjoin two fiber optic cables together.
  • SMA-FC is and adapter used to adjoin optical components with different connection types, SMA-905 and FC.
  • SMA-C-Mount to SMA-905 adapter allows connection of the spectrometer to other optical devices such as microscopes and telescopes.
  • VFT is fiber optic Vacuum Feed Through, 600 micron UV/VIS, mounted on a 275″ CF Flange with male SMA-905 connectors on each end. Many other options available



Technical Specifications


Battery Packs



  • BP1 is a Lithium-Ion Battery Pack with 5400mA/h, 2 x 5V out. Ultimate Portability using the light weight BP1/BP2 battery pack for field work. Long Life rechargeable battery pack BP1 provides over 5 hours of continuous spectral acquisition for RED-Wave NIR-InGaAs spectrometer with TEC or 20 hours with TEC off or when using other spectrometer models.
  • BP2 is a Lithium-Ion Battery Pack with7400mA/h, 2 x 5V & 2 x 12V out. BP2 adds on 2 additional 12V power outputs to operate 2 spectrometers and 2 light sources. The BP2 can power the SL1 and the SL5 lamps.



Technical Specifications


IC2

IC2 is a 2” cube with internal integrating sphere. It has a 5/8” input port, internal reflective coating, and SMA fiber optic output. The additional SMA input can be used for reflectance illumination.





IS6

IS6 is a 6” diameter integrating sphere with a 2” input port, internal reflective coating, baffle system, and SMA fiber optic output. Great for high intensity light level applications, LED arrays and much more.





LS12

LS12 is a 12” integrating sphere that opens to allows for simple internal mounting of devices for light measurement such as discrete LEDs, arrays, and more. A tungsten halogen bulb and data file are included for system calibration using the SpectraWiz® radiometer software.



IC2 - Technical Specifications

IS-6 - Technical Specifications

LS2 - Technical Specifications


Instrument Case

Instrument Case is watertight, crushproof, and dust proof. It has easy to open double throw latches and padlock protectors. Pack your StellarNet spectroscopy equipment for field measurements. Dimensions are 6.75″ x 11.18″ x 6.12″ (42.5 x 28.4 x 15.5 cm).



Technical Specifications


Dip Probe
dipprobe

The Reflectance Probe has 6 illuminating fibers and 1 read fiber bundled together using 400 micron fibers. As an option, the 2R probe has 5 illuminating fibers and 2 read fibers. All fibers are 400μm.

  • R600-8-VisNIR is a Reflectance Probe for VIS-NIR with 7 optical fibers bundled around 1 600μm fiber. For reflectance measurements the 7 exterior fibers are illuminated by a high output power light source (SL1, SL3, or SL4) and the interior fiber is the read fiber that collects reflected light and returns the signal to the spectrometer.
  • R600-8-UVVIS-SR is a Reflectance Probe for UV and Visible wavelengths; 7 around 1 with 600μm fibers.
  • RPH1 is a Reflectance Probe Holder block that maintains a 45 degree angle and user set distance from sample (0-3/4″).
  • RPH2 is a Reflectance Probe Holder block that maintains a 45 and/or 90 degree angle and user set distance from sample (0-3/4″).
  • RPH3 is a Reflectance Probe Holder stand for 90° angle measurements.
  • RTIP45 is a black plastic tip has 45 degree angle and slides onto reflectance probe and locks to set position.
  • RS50 is a 50mm diameter white reflectance standard made of Halon. It is used to take reference measurements using the R600 Reflectance Probes. The white standard will reflect >97% of the light from 300-1700nm.



Dip Probes - Technical Specifications


Instrument Case
  • RS50 is a 50mm diameter white reflectance standard made of Halon. It is used to take reference measurements using the R400 Reflectance Probe. The white standard will reflect >97% of the light from 300-1700nm.
  • RS-HR High-reflectivity Specular Reflectance Standard is a mirrored, fused-silica standard that can be used as a reference when measuring surfaces with high specular reflectance such as optical substrates, coatings, and metals
  • TF-STD1 Thin Film standards for thickness measurement verification. Includes Si substrate for reference with 2 additional substrates with 100nm and 1000nm thickness of SIO2. Additional thickness standards (10nm and 10,000nm) can be added to the set for $100 each.
