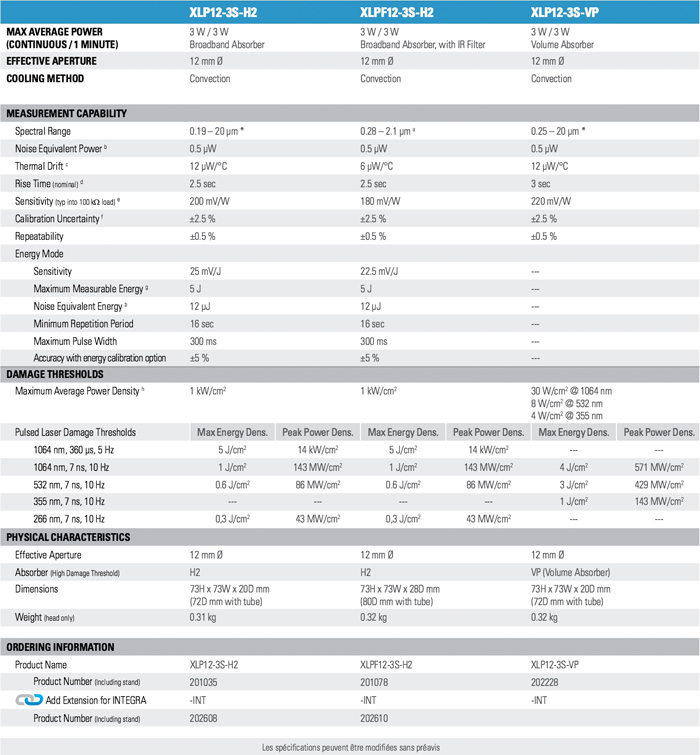

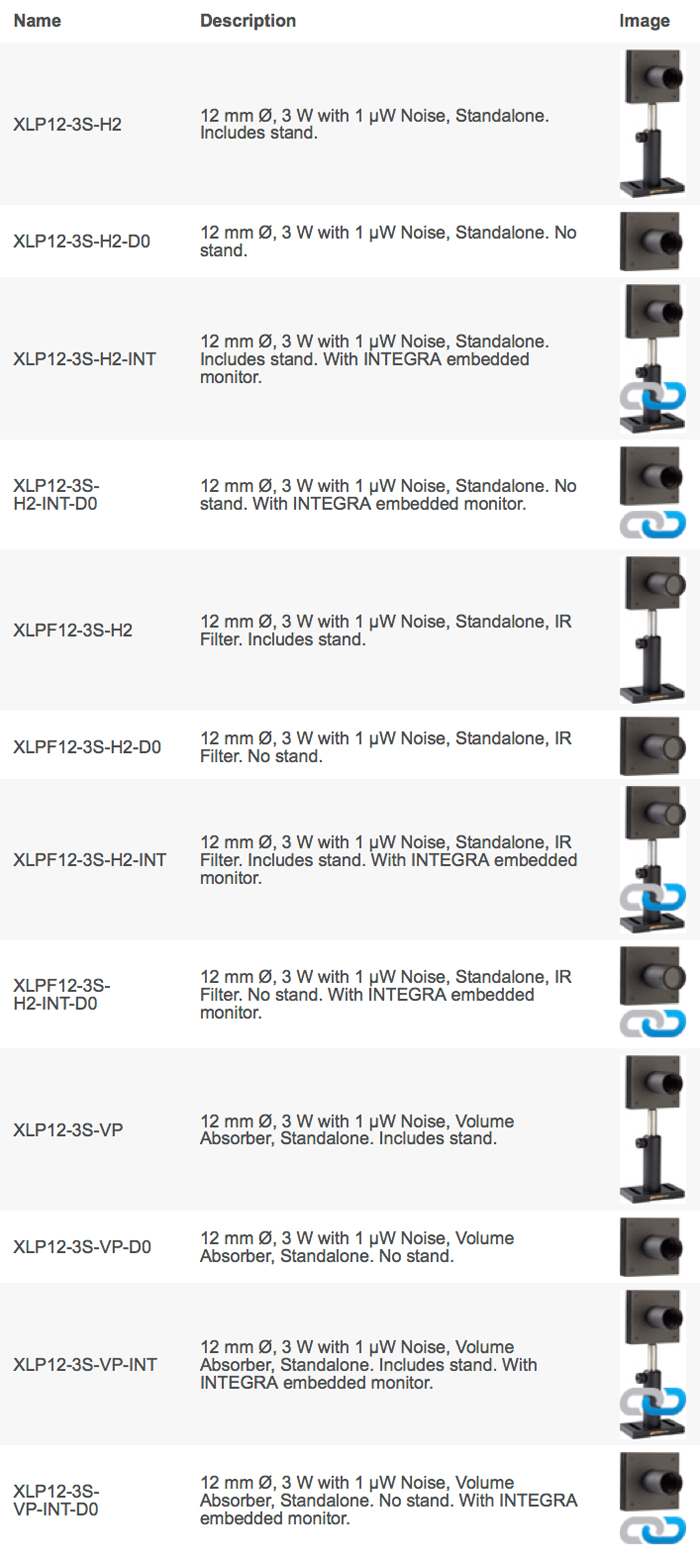

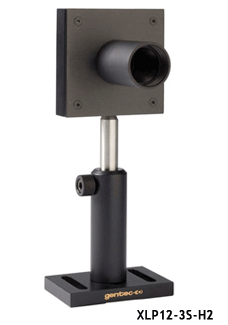

Low Power Thermopile
Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device

Minimal Thermal Drift
Only 6 µW/°C (with the IR filter)

High Sensitivity
200 mV/W (without the IR filter)

Special Model for Ultrashort Pulses
VP (Volume Absorber) version is perfect for low power lasers with ultrashort pulses (ps and fs)

IR Filter (XLPF12 Model)
Removes unwanted IR interference

Isolation Tube
Eliminates power fluctuations created by air turbulence

Compatible Monitors: MAESTRO

Download PDF Brochure

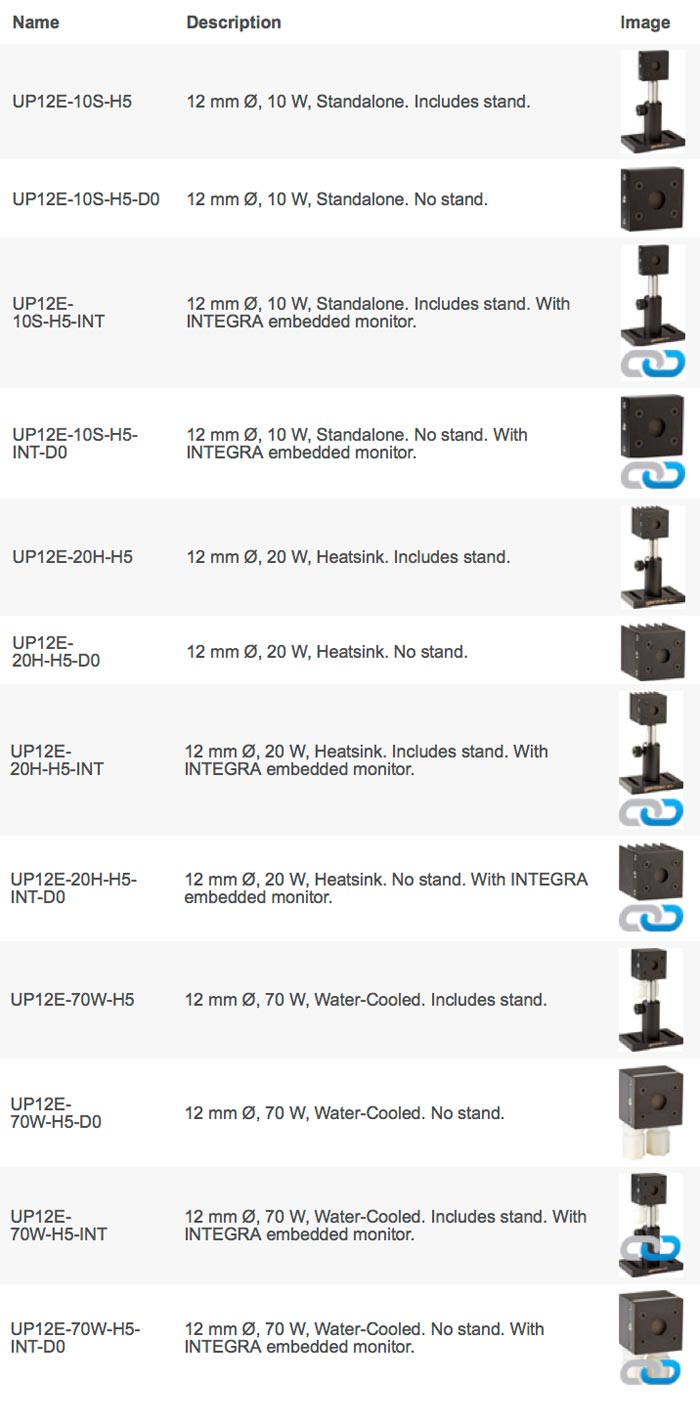

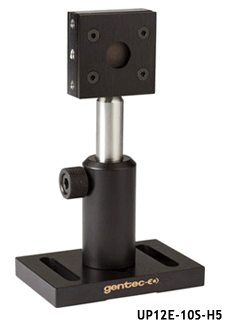

Modular Concept
Increase the power capability of your detector: 3 different cooling modules

High Performance

• Fast Rise Time (0.3 sec)
• High Damage Threshold (36 kW/cm2)

Compact Design
Only 14 mm thick (10S model)

Energy Mode
Measure single shot energy up to 5 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

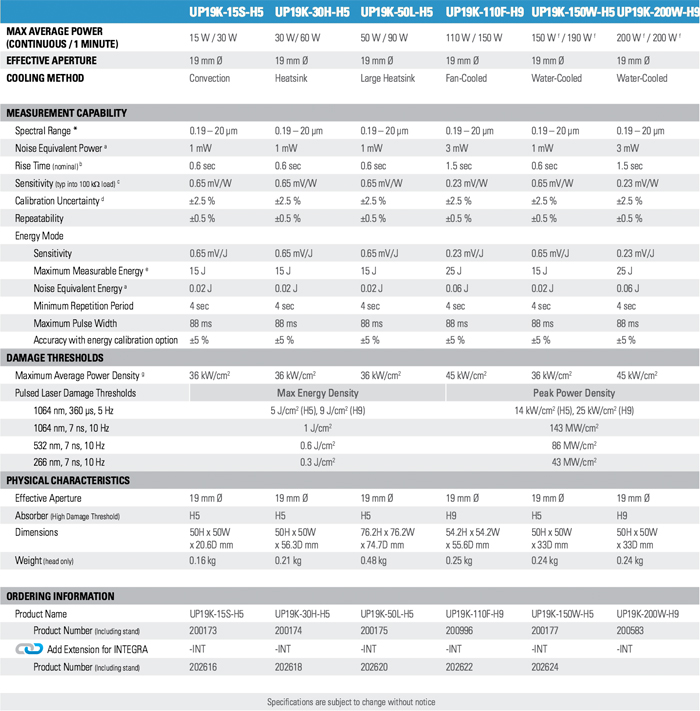

Modular Concept
Increase the power capability of your detector: 5 different cooling modules

High Performance

• Fast Rise Time (0.6 sec)
• High Damage Threshold (45 kW/cm₂)

Compact Design
Only 20.6 mm thick (15S model)

Energy Mode
Measure single shot energy up to 15 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

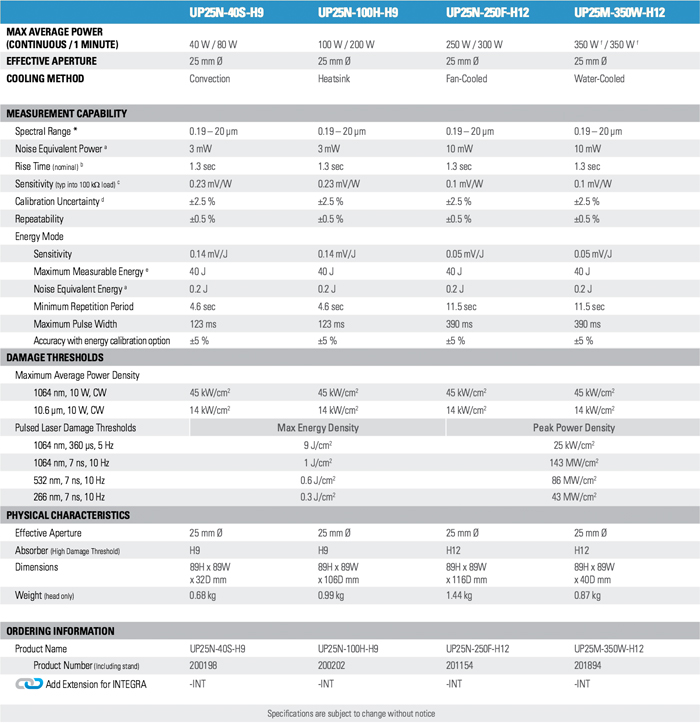

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

High Performance

• Fast Rise Time (1.3 sec)
• High Damage Threshold (45 kW/cm₂)

Energy Mode
Measure single shot energy up to 40 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

High Performance

• Fast Rise Time (2 sec)
• High Damage Threshold (45 kW/cm₂)

Compact Design
Only 32 mm thick (40S model)

Energy Mode
Measure single shot energy up to 200 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

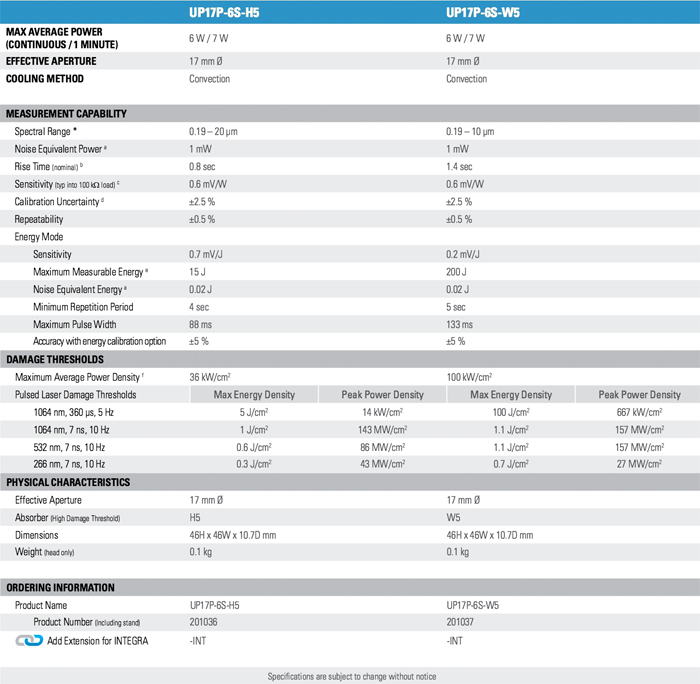

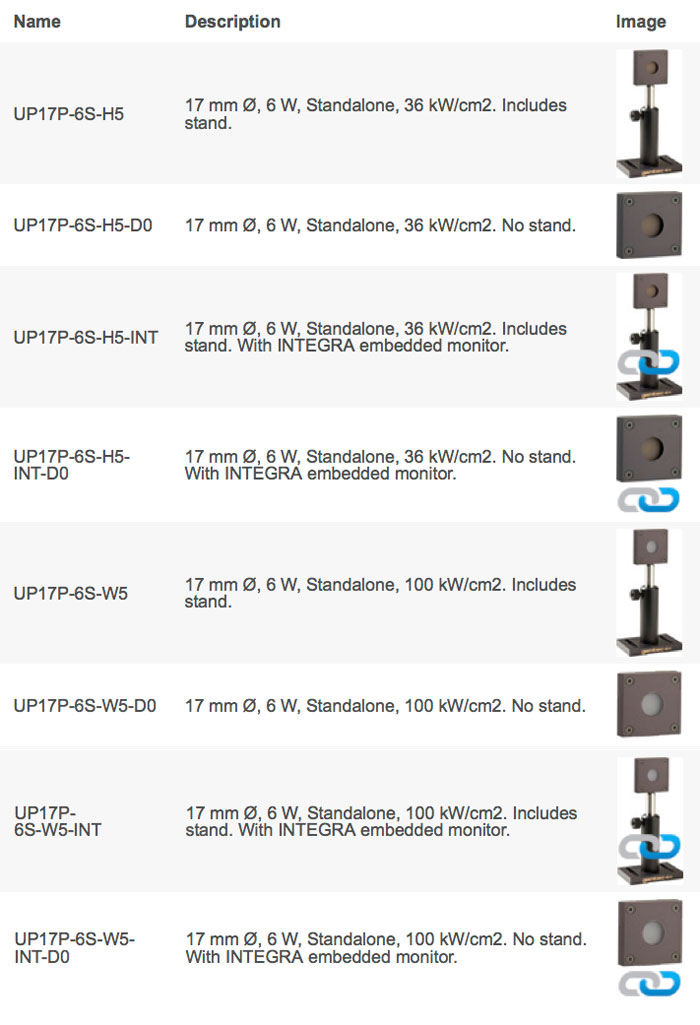

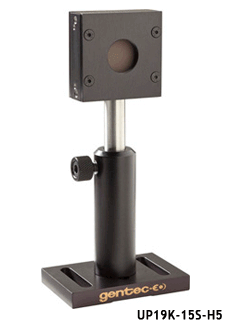

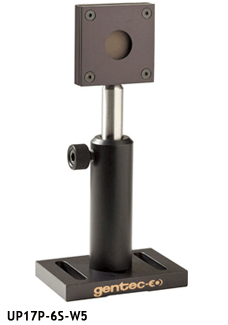

Ultra Thin Casing
Only 10.7 mm thick!

Choice Between 2 Absorbers

• H5: 36 kW/cm₂
• W5: Unequalled 100 kW/cm₂

High “Power to Size” Ratio
6 W continuous reading

Energy Mode
Measure single shot energy up to 200 J (with the W5 version)

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Modular Concept
Increase the power capability of your detector: 5 different cooling modules

Very High Damage Threshold
100 kW/cm₂ in average power density

Compact Design
Only 21 mm thick (15S model)

Energy Mode
Measure single shot energy up to 200 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

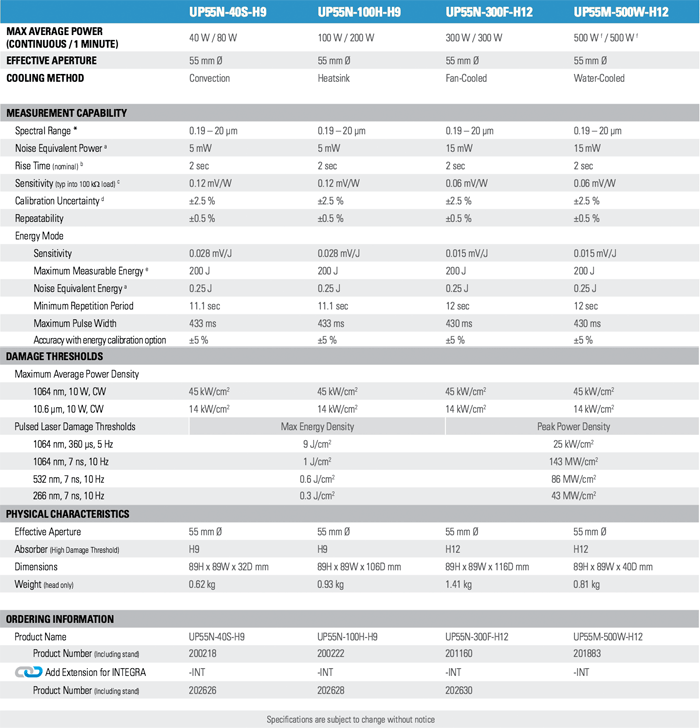

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

Very High Damage Threshold
100 kW/cm₂ in average power density

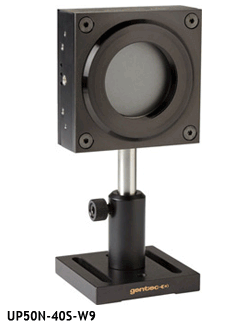

Very Large Aperture
50 mm effective aperture diameter, perfect for the largest beams

Highest Energy Readings in the Series
Measure single shot energy up to 500 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 2 different cooling modules

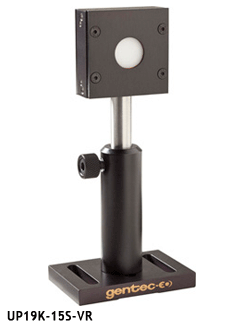

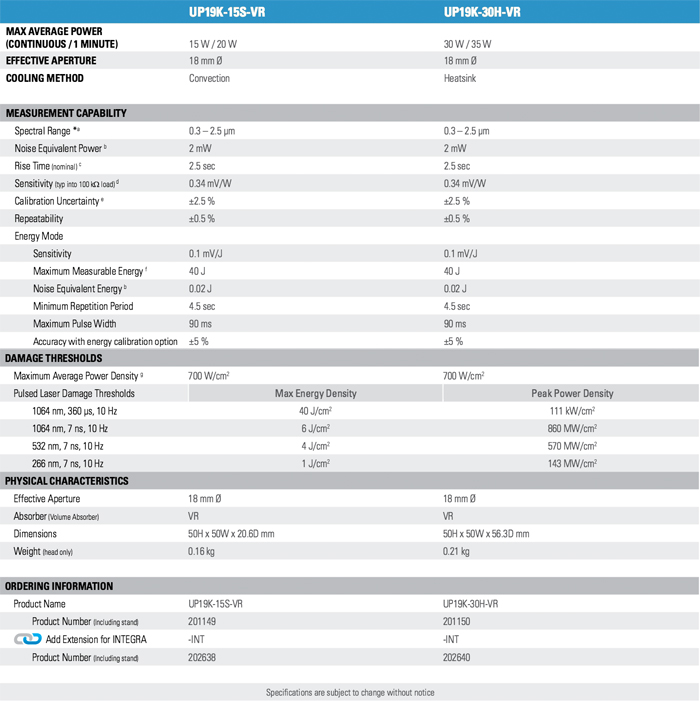

High Peak Power Volume Absorber

• Perfect for high density beams
• Average power density of 700 W/cm₂ prevents degradation caused by repetitive pulses

Compact Design
Only 21 mm thick (15S model)

Energy Mode
Measure single shot energy up to 40 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure

Modular Concept
Increase the power capability of your detector: 4 different cooling modules

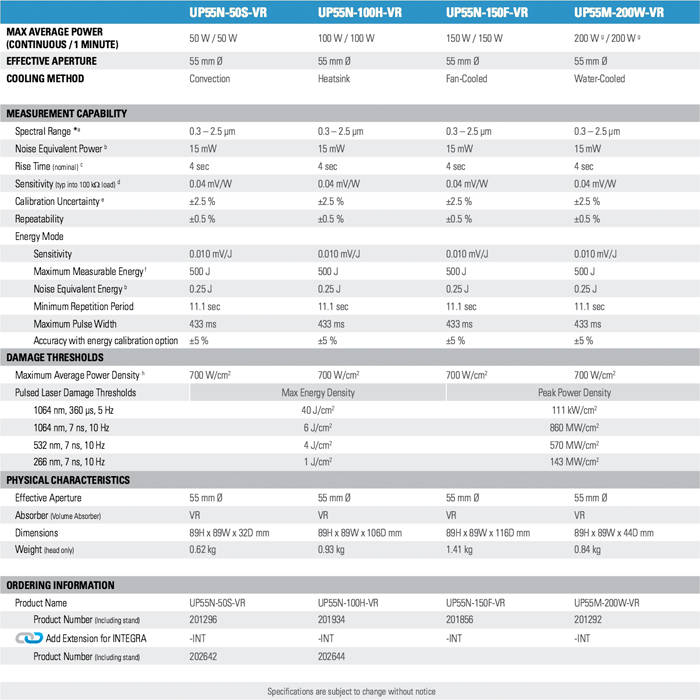

High Peak Power Volume Absorber

• Perfect for high density beams
• Average power density of 700 W/cm₂ prevents degradation caused by repetitive pulses

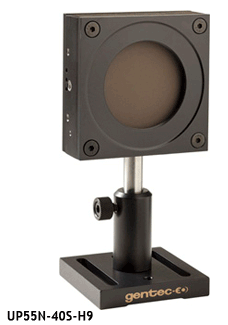

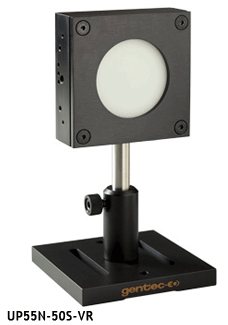

Large Aperture
55 mm aperture to accomodate the largest beams

High Average Power
Up to 200 W of continuous power with the watercooled unit

Energy Mode
Measure single shot energy up to 500 J

Smart Interface
Containing all the calibration data

Compatible Monitors: MAESTRO

Download PDF Brochure
