- High density Honeycomb core structure
- Surface Roughness: ≤0.8μm
- Flatness/Unevenness: 0.02-0.05mm/m²
- Inherent Frequency: 1.5-2Hz
- Amplitude: ≤5-10μm
- Mounting Holes: M6 tapped holes on 25mm grid. The first hole to the edge is 12.5mm or 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel

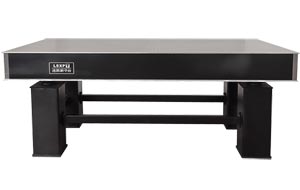

The supports (Isolators) adopt compound-material solid damping (vibration-isolating pad), which is used in such experimental environment without much vibration.

- Height: standard height 800mm or as user preferred.
- Compound-material solid damping (vibration-isolating pad)
- 10HZ, Vibration-isolation Effect: 55%-76%
- 20HZ,Vibration-isolation Effect: 55%-76%.

- High density Honeycomb core structure
- Surface Roughness: 0.5-0.6μm
- Flatness/Unevenness: 0.02-0.05mm/m²
- Inherent Frequency: 1.5-2Hz
- Amplitude: <1μm
- Mounting Holes: M6 tapped holes on 25mm grid. The first hole to the edge is 12.5mm or 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel.

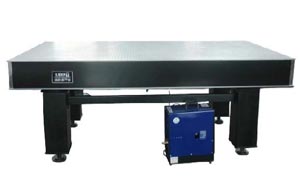

The support system (Isolators) adopts the patented technology: Ultra-thin diaphragm air-spring with self-collimating pendulum bar technique, which can provides a relative stationary experiments environment with auto inflating and self-centering performance. The pneumatic system is of Germany FESTO products.

- Height: standard height 800mm or as user preferred.
- Self balancing with bulb self-centering pendulum-bar technique.
- Re-leveling Accuracy: ±0.250mm
- Vertical Isolation, 5Hz: 92%
- Horizontal Isolation, 5Hz: 90%
- Vertical Isolation, Res: 1Hz
- Vertical Isolation, 10Hz: 95%
- Horizontal Isolation, Res: 1-2Hz
- Auto air inflating system.

- Specific Gravity : 2970~3070kg/m2
- Compressive Strength : 245~254MPa
- Elastic Modulus : 1.27~1.47GPa
- Linear Expansibility : 4.61x10-6/centigrade
- Water Absorbtion : < 0.13%
- Shore Hardness : > = 70Hs

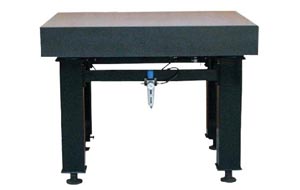

Two kinds of isolators:
1.Pneumatic isolators
2.Solid damping isolators ( Pricelist for the granite table with solid damping isolators)
