Pneumatic auto balancing & self centering optical table

Series ZDT

Application:
For opto-measuring experiments and conduct, holographic imaging, grating fabrication, laser marking and microscope.

+ - Specification Click to collapse

- High density Honeycomb core structure
- Surface Roughness: 0.5-0.6μm
- Flatness/Unevenness: 0.02-0.05mm/m²
- Inherent Frequency: 1.5-2Hz
- Amplitude: <1μm
- Mounting Holes: M6 tapped holes on 25mm grid. The first hole to the edge is 12.5mm or 37.5mm.
- Top Skin: 5mm Bottom Skin: 4mm
- Material: Stainless Steel.

+ - Isolators Click to collapse
The support system (Isolators) adopts the patented technology: Ultra-thin diaphragm air-spring with self-collimating pendulum bar technique, which can provides a relative stationary experiments environment with auto inflating and self-centering performance. The pneumatic system is of Germany FESTO products.

- Height: standard height 800mm or as user preferred.
- Self balancing with bulb self-centering pendulum-bar technique.
- Re-leveling Accuracy: ±0.250mm
- Vertical Isolation, 5Hz: 92%
- Horizontal Isolation, 5Hz: 90%
- Vertical Isolation, Res: 1Hz
- Vertical Isolation, 10Hz: 95%
- Horizontal Isolation, Res: 1-2Hz
- Auto air inflating system.

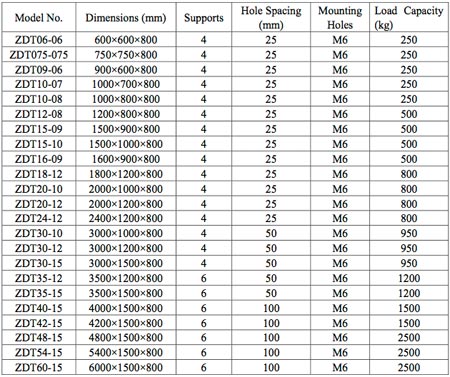

+ - Sizes Click to collapse
